Low Power Dual Color SMD LED Chip 2014 SMD 0.06W Blue Color luminous Diode
2014 SMD 0.06W Blue Color luminous Diode Low Power Dual Color SMD LED Chip
Product Description of 2014 smd led
Absolute Maximum rating of 2014 smd led:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 60 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics of 2014 smd led:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit |
| Min | Typ | Max |
| Dominant wavelength | If=20mA | λd | 460 | --- | 470 | nm |
| Forward voltage | If=20mA | Vf | 2.8 | | 3.4 | v |
| Luminous Intensity | If=20mA | Iv | 400 | | 500 | lm |
| Viewing angle at 50% lv | If=20mA | 2θ1/2 | | 120 | | Deg |
| Resverse current | Vr=5v | Ir | | | 10 | mA |
Outline dimension of 2014 smd led:
Feature of 2014 smd led:
1. High efficiency and energy saving
2. Long life
3. High brightness
4. LED light is small in size
Application of 2014 smd led:
1. Car backlight or indicator: internal and external lighting, dashboard, switches, reading lights, audio and video equipment, etc
2. Backlight: LCD, switch, mobile phone, lighting advertising.
3. Lighting for indoor and outdoor applications.
Related Products
Hot sales
1
Dual color red and green 3227 bi-color smd led for charger
2
Hot selling promotion 0805 smd led diode use for car LED display
Certifications
Company Information

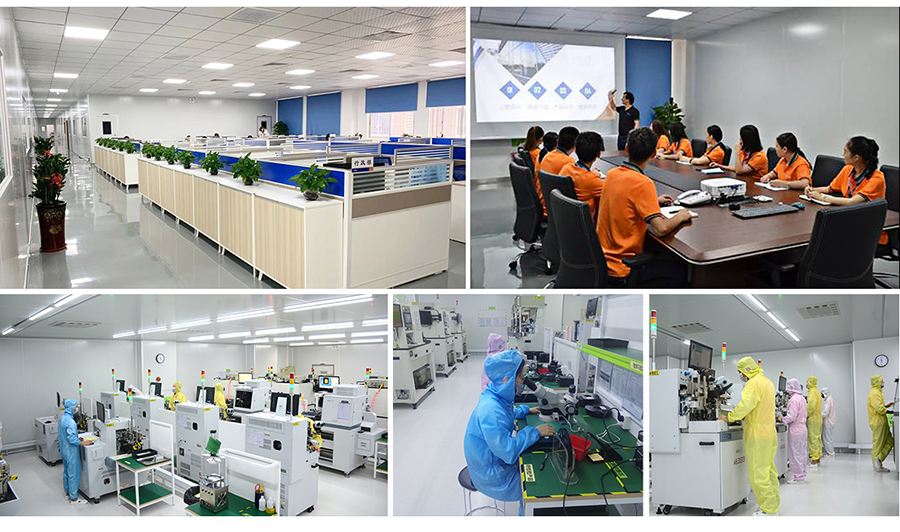

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.
LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.
Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.
XMH provides excellent sales service and strong technical supports to our customers.
FAQ
Why Choose US?
Q1: Can I get some samples for tests?
A1: Yes, we welcome sample order to test and check quality.
Q3: How do you ship the goods and how long does it take to arrive?
A3: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: How to proceed an order for led light?
A4: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: How about the quality of the leds?
A5: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwidesince the year 2004. we offer 2 years warranty
Packaging & Shipping
PACKAGE:
Single package size: 21X24X1 cm
Package Type: 3000pcs / reel, 40bags / carton & According To The Request.
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
